VES · Exhaust fan · Large airflow
VES Exhaust Fan, Shutter Fan, Box Fan,
- 4,874 CFMon high
- 24-inchblade
- 3speeds
- 1/4 HPmotor
Amazon shows the current price, delivery and seller. As an Amazon Associate we earn from qualifying purchases.
Specs cited from Manufacturer source ↗Photos: Amazon listing ↗ · refreshed Oct 28, 2026

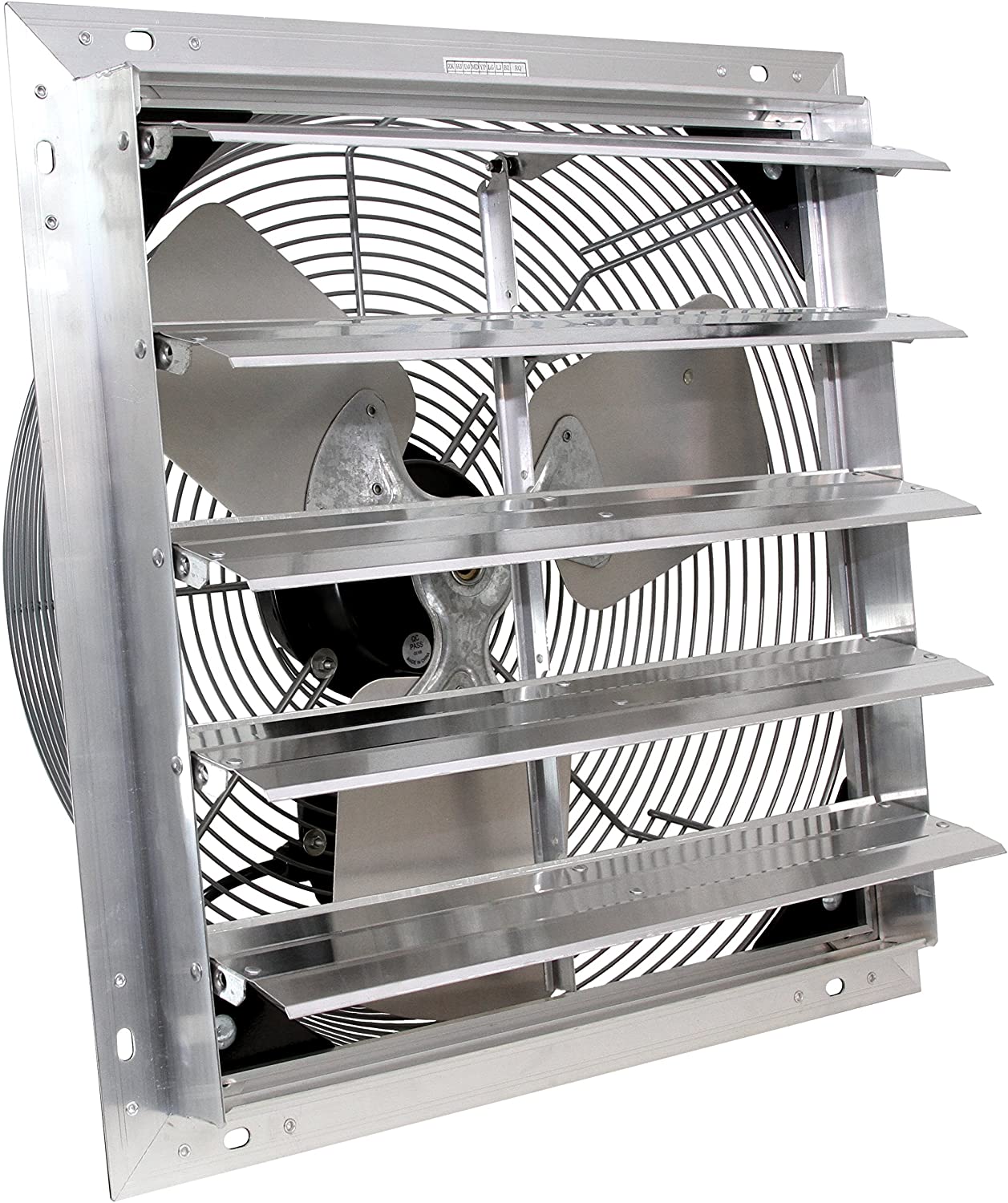

The VES 24-inch shutter fan is a plug-in, three-speed wall exhaust fan that the listing sells with a 9-foot cord for indoor or outdoor ventilation. Its airflow is not documented, so it suits replacements better than projects sized by CFM.
What works
- 4,874 CFM on high from a 24-inch blade
- 3 speeds, down to 1,881 CFM on low
- 1/4 HP motor on standard 115 V power
- 9-ft power cord
What doesn't
- No published noise, wattage, amperage or warranty
Who it's for
Good fit
- Garages, sheds, greenhouses and coops where a plug-in 24-inch shutter fan fits the wall
- Buyers who want three speeds and a 9-foot cord instead of hardwiring
- Replacing an existing 24-inch VES shutter fan in the same opening
Look elsewhere if
- Anyone who has to size exhaust to a rated CFM figure
- Buyers who need a published noise, wattage or warranty figure
- Moving air around a room rather than out of it
A good fit for your job? Check the current price and delivery.
See price on AmazonWhy it stands out
The VES 24 is a plain, plug-in shutter exhaust fan. The listing describes a 24-inch fan with three speeds and a 9-foot cord, pitched at garages, attics, greenhouses, shops and chicken coops. That cord is the practical draw. Many shutter fans this size need an electrician; this one plugs into a wall outlet.
What it lacks is a documented airflow rating. No manufacturer page or manual backs a CFM number for this listing, so you cannot size it against a room with any confidence. Treat it as a like-for-like replacement or a simple garage fan, not as an engineered ventilation choice.
What to know before you buy
- Power: plug-in via the 9-foot cord, per the listing. Voltage, amperage and wattage are not published.
- Mounting: it needs a framed wall opening sized to the fan, with the shutter facing outdoors.
- Replacement air: an exhaust fan only moves air as well as the room can refill. Open a door, window or intake vent on the far side of the space.
- Location: the listing says indoor or outdoor ventilation; no weather rating is documented beyond that.
- Not published: noise level and warranty.
How it compares
- iLIVING ILG8SF24V-T: the same 24-inch shutter format with a manufacturer rating of 4,200 CFM, two speeds, a built-in thermostat and a 6-foot cord. Pick it if you want a known number and automatic control. Its manual says indoor use only.
- Canarm AX24-2: a 24-inch fan in an aluminum housing with built-in shutters, listed at 5,000 CFM from a 1/3 HP, 115 V direct-drive motor. It is the stronger listed performer, but the listing mentions no cord, so plan the power connection first.
- Hessaire 30NS8V240: a step up to 30 inches, listed at 6,700 CFM with a totally enclosed IP55 motor. Choose it when a 24-inch fan will not clear the heat.
Bottom line
Buy the VES 24 to replace an existing unit or to get a simple plug-in shutter fan into a garage wall. If airflow matters, and for sizing it usually does, the iLIVING ILG8SF24V-T is the better-documented 24-inch pick.
Verdict
Buy the VES 24 if you are swapping out an existing VES shutter fan or want a simple plug-in 24-inch unit with three speeds. Skip it if you need to size ventilation to a number; the iLIVING ILG8SF24V-T carries a manufacturer rating in the same size.
Questions people ask
- How much air does the VES 24-inch exhaust fan move?
- No airflow figure is documented for this listing. If you need a rated number at the same size, iLIVING rates its 24-inch ILG8SF24V-T at 4,200 CFM.
- Does the VES 24 need to be hardwired?
- No. The listing says it comes with a 9-foot cord, so it plugs into an outlet. You still need a wall opening sized to the frame and a path for replacement air.
- Can it be used outdoors?
- The listing title says it is for indoor or outdoor ventilation. No manufacturer document spells out a weather rating beyond that.
- How many speeds does it have?
- Three, according to the listing.
Before you buy
Installation and buying checks
Use these questions to verify the exact configuration. Linked facts are cited; unlisted details stay questions.
Mounting and support
What mounting method and hardware does the exact unit require?
Clearance and handling
Do the listed physical details leave enough clearance for installation, adjustment, and service?
- Blade diameter: 24 inManufacturer source ↗
Electrical match
Does the documented electrical information match the planned supply? Confirm the installed unit’s nameplate and installation instructions before connecting it.
- Voltage: 115 VManufacturer source ↗
- Current: 2.6 AManufacturer source ↗
Airflow at the job
Is the listed airflow rated at an operating point that matches the job after placement, obstructions, and system resistance are considered?
- Airflow (high): 4,874 CFMManufacturer source ↗
Location requirements
Does the site require an environmental rating or guard? Neither is listed here.
Put 4,874 CFM in context
The VES Exhaust Fan, Shutter Fan, Box Fan, has a listed airflow of 4,874 cubic feet per minute. The table compares this rated volume with example room volumes. It does not measure fresh-air exchange, air speed at your body, or room coverage.
| Room | Size | Nominal room volumes / hour | Nominal pass interval |
|---|---|---|---|
| One-car garage | 22 × 12 × 9 ft · 2,376 ft³ | 123× | 29 s |
| Two-car garage | 22 × 20 × 9 ft · 3,960 ft³ | 74× | 49 s |
| Workshop | 40 × 30 × 12 ft · 14,400 ft³ | 20× | 3 min |
| Warehouse bay | 100 × 50 × 16 ft · 80,000 ft³ | 3.7× | 16 min |
A circulation fan does not by itself replace indoor air. Exhaust airflow depends on a makeup-air path and system resistance. Use installed outdoor airflow for ventilation calculations.
Formula: airflow × 60 ÷ room volume. CDC explains the ventilation form of this equation; here the input is a catalog rating, so the result is a volume comparison.
Listing details
What we know about this listing
Listing data was imported on October 28, 2026. Each specification can have a different source-check date; the evidence below is the most precise source information available here.
Sources for 10 listed specifications
- Airflow (high): VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row; CFM at 0.10 in. static pressure (0.20 in.: 3899/2876/1504) — “SF2414C3 24˝ 1/4 HP 3 Spd 115 V; CFM .10˝ SP H/M/L 4874/3596/1881”
- Airflow (medium): VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row; CFM at 0.10 in. static pressure — “SF2414C3 24˝ 1/4 HP 3 Spd 115 V; CFM .10˝ SP H/M/L 4874/3596/1881”
- Airflow (low): VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row; CFM at 0.10 in. static pressure — “SF2414C3 24˝ 1/4 HP 3 Spd 115 V; CFM .10˝ SP H/M/L 4874/3596/1881”
- Blade diameter: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Speeds: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Motor: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Voltage: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Current: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Max speed: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Performance table, SF2414C3 row — “SF2414C3 24˝ 1/4 HP, 3 Spd, 115 V, 1 Ph; Amps H/M/L 2.6/1.8/1.3; RPM H/M/L 1564/1242/903”
- Cord length: VES Environmental Solutions aluminum exhaust shutter fans cut sheet · checked Sep 23, 2026 · Features list, page 1 — “Built in speed switch with 9´ cord attached”
Photos illustrate the listed model. Confirm the current variant, included hardware, and finish with the seller before purchase.
